Windstar On The Bay Clubhouse Expansion
Grouted Pulldown Helical Pilings Deliver Long-Term Foundation Stability in Naples, Florida
Learn how Coastal Foundation Solutions used grouted pulldown helical pilings to stabilize and strengthen the Windstar Golf & Country Club clubhouse expansion in Naples, FL — ensuring lasting performance in challenging coastal soils.
Project Overview: Building a Stronger Foundation for Windstar
The Windstar On The Bay in Naples, Florida, required a dependable foundation system for its large-scale clubhouse expansion. Coastal Foundation Solutions engineered and installed grouted pulldown helical pilings (GPDH) — a high-strength, corrosion-resistant deep foundation technology ideal for Southwest Florida’s coastal geology.
Project Snapshot: Key Details at a Glance
Location: Windstar Golf & Country Club, Naples, FL
Project Type: Clubhouse Expansion – Deep Foundation Installation
Client: Windstar Golf & Country Club
Completion: April 2025
Site Challenges: Coastal Soils and Groundwater Complexity
Unpredictable Coastal Geology in Naples
The subsurface beneath Windstar included soft sands, silts, and limestone layers at varying depths — conditions that make traditional pile systems difficult to install.
Why Conventional Piles Were Not Suitable
Driven and auger-cast piles posed issues with vibration, noise, and spoil displacement, making them unsuitable for an active clubhouse environment adjacent to Naples Bay.
Engineering the Solution: Grouted Pulldown Helical Pile System

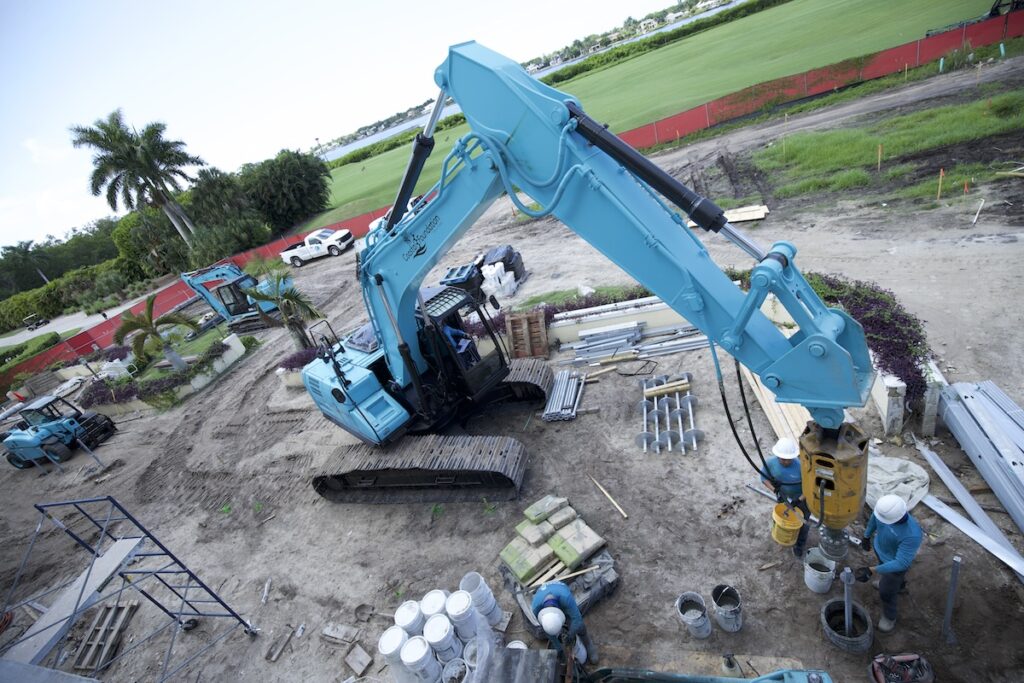

Coastal Foundation Solutions implemented the Grouted Pulldown Helical Pile System, a hybrid technology combining torque-driven helical installation with continuous grout encapsulation for exceptional load performance.
How Grouted Pulldown Helical Piles Work

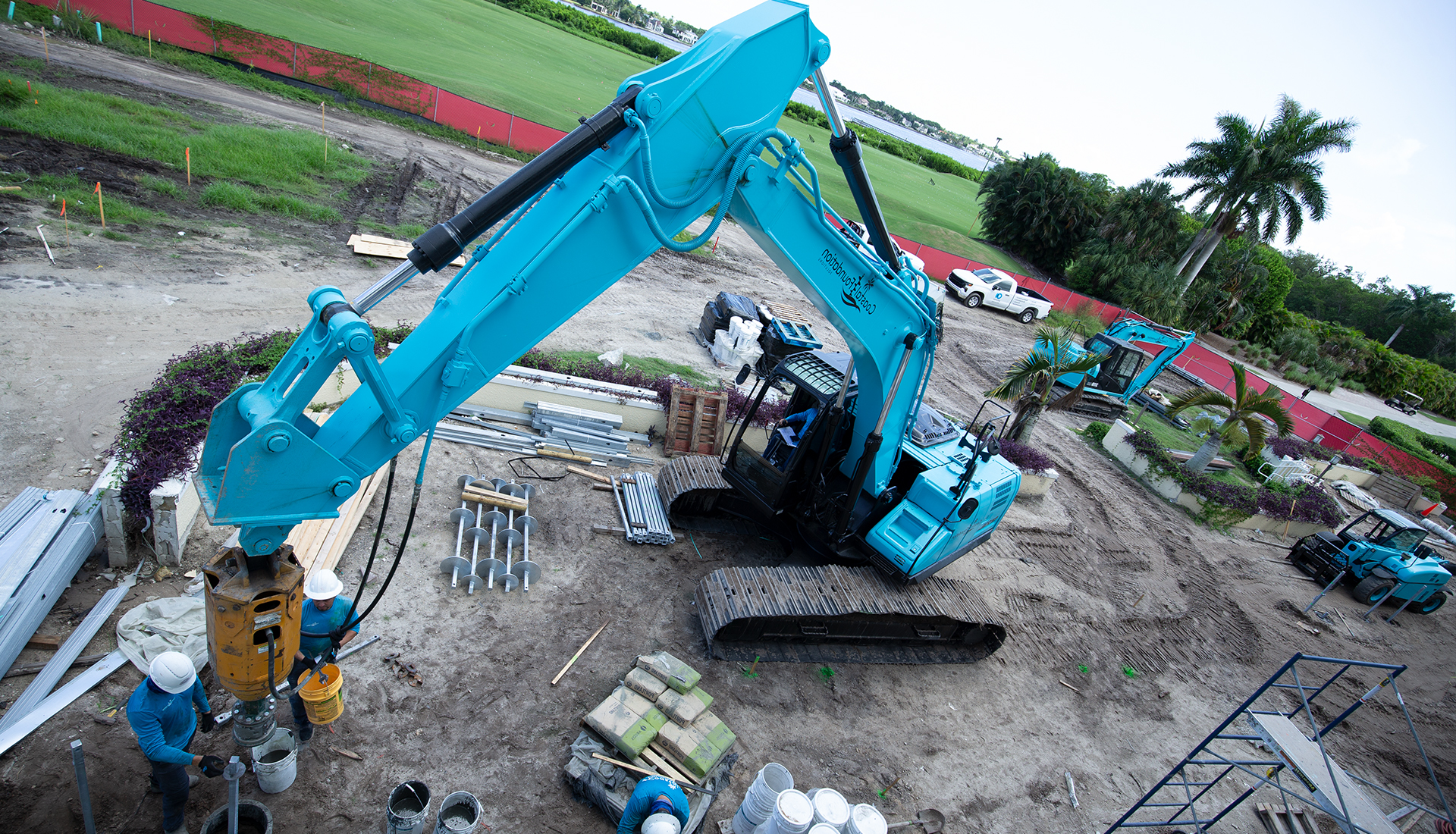

The system installs via torque-driven helical anchors that simultaneously form a grout column as the shaft advances. This creates a bonded pile element that resists compression, uplift, and lateral forces — ideal for coastal construction.
Step-by-Step Installation Process
- Load Testing & Design Verification – Preconstruction load testing confirmed 35-ton compression capacity at 38-foot depth.
- Calibrated Torque Installation – Each of the 52 piles was advanced using 5,000 ft-lb torque heads for precise load control.
- Continuous Grout Column Creation – A 5-inch structural grout column was installed along each pile, enhancing skin friction and corrosion protection.
- On-Site Coordination – Work was performed adjacent to active facilities without disrupting daily club operations.
Benefits of the GPDH System in Coastal Projects
- Exceptional axial and lateral load performance
- Grout encapsulation shields steel shafts from saltwater corrosion
- Quiet, low-impact installation suited for operating structures
- Flexibility to adapt to limestone and groundwater variations
Real-World Performance Results
The Windstar project demonstrated the superior performance of grouted pulldown helical pilings in coastal conditions.
- 52 GPDH piles installed to depths between 34–40 feet
- Verified load capacity exceeding 35 tons per pile
- Zero groundwater contamination or vibration-related damage
- Corrosion-resistant design ensuring long-term structural integrity
This installation delivers permanent stability for the expanded clubhouse, protecting against settlement, erosion, and hydrostatic uplift.
Materials and Equipment Used
- ECP Grouted Pulldown Helical Pile System
- SS175 Shaft Assemblies with 8”, 10”, and 12” helix configuration
- 5-inch continuous grout column
- Galvanized and epoxy-coated steel components for marine durability
Frequently Asked Questions About Grouted Pulldown Helical Pilings in Naples, Florida
What are helical pulldown pilings, and how do they differ from standard helical piles?
Helical pulldown pilings—also known as grouted helical piles or grouted pulldown micropiles—combine a traditional helical anchor with a continuous grout column. As the steel shaft is advanced into the ground, grout is injected through a tremie system to form a bonded column around the pile. This increases both compressive and lateral capacity while protecting the steel from corrosion. Unlike standard helical piles, pulldown versions provide enhanced strength and longevity, making them ideal for Florida’s soft, moisture-rich soils.
Why are grouted helical pulldown piles ideal for Florida’s coastal foundations?
Florida’s coastal regions—such as Naples, Bonita Springs, and Cape Coral—feature high water tables, loose sands, and marine exposure.
Helical pulldown piles perform exceptionally in these environments because they:
- Offer high load-bearing capacity in weak or variable soils
- Provide corrosion protection via full grout encapsulation
- Install without vibration, preventing damage to nearby structures
- Adapt easily to shallow limestone and tidal groundwater conditions
How deep do helical pulldown pilings typically go in Florida projects?
Depth varies by site, but in most Florida installations, helical pulldown pilings extend between 25 and 45 feet, depending on soil density, structure weight, and limestone strata. Engineers confirm final depth using torque correlation testing, ensuring each pile achieves its required load capacity—often 30 to 40 tons per pile in coastal conditions.
Can helical pulldown piles resist hurricane and flood-related forces?
Yes. Properly installed pulldown piles provide excellent resistance to uplift, lateral, and cyclic storm loads. The grout column adds stiffness and mass, preventing displacement from storm surge, wind uplift, and wave action. This makes them a trusted foundation choice for coastal homes, marinas, seawalls, and clubhouses throughout hurricane-prone regions of Florida.
Are helical pulldown pilings suitable for both new construction and foundation repair?
Absolutely. Grouted helical piles are versatile enough for:
- New builds requiring deep foundation support in unstable soils
- Retrofit and underpinning projects for homes or buildings showing settlement
- Seawall and marine structure reinforcement
- Commercial expansions such as clubhouses, boardwalks, and docks Their small installation footprint and low noise make them ideal for tight or occupied sites.
How long do helical pulldown pilings last in Florida’s marine environment?
When installed with hot-dip galvanized and epoxy-coated steel shafts fully encapsulated in grout, pulldown piles can last 75 years or more. The grout barrier prevents exposure to oxygen and chlorides—two primary causes of corrosion in Florida’s salty, humid climate. Periodic inspection is recommended, but maintenance needs are minimal due to the self-protecting design.
