Bokeelia Underpinning & Seawall Repair:
Engineering Coastal Stability and Foundation Resilience
Project Information
- Location: Bokeelia, Florida
- Project Type: Foundation Underpinning & Seawall Structural Repair
- Client: Waterfront Homeowner
- Completion Date: July 2024
Engineering Analysis: Understanding Coastal Foundation Failure
Bokeelia, Florida—nestled at the northern tip of Pine Island—is known for its tranquil canals, mangroves, and premium waterfront properties. However, after Hurricane Ian (2022), many of these coastal structures faced severe foundation distress and seawall damage caused by storm surge, soil displacement, and long-term erosion.
When a local homeowner noticed progressive foundation settlement and visible seawall cracking, Coastal Foundation Solutions was contacted to engineer a dual-scope restoration plan. The challenge required both subsurface stabilization and structural seawall reinforcement, all while preserving the fragile coastal environment.
A comprehensive geotechnical and site assessment revealed void formation beneath the home and substantial soil migration behind the seawall panels. Based on soil composition, tidal exposure, and load-bearing calculations, underpinning was selected as the most reliable long-term solution to re-establish foundation stability. Simultaneously, a marine erosion guard and filtration system was designed to mitigate water-induced pressure and prevent future soil washout behind the wall.ability. Simultaneously, a marine erosion guard and filtration system was designed to mitigate water-induced pressure and prevent future soil washout behind the wall.
Engineered Performance Solution: Foundation Underpinning and Seawall Reinforcement
Once approved, Coastal Foundation Solutions mobilized its certified marine construction team with specialized torque-monitoring equipment and low-impact installation machinery ideal for constrained coastal sites.

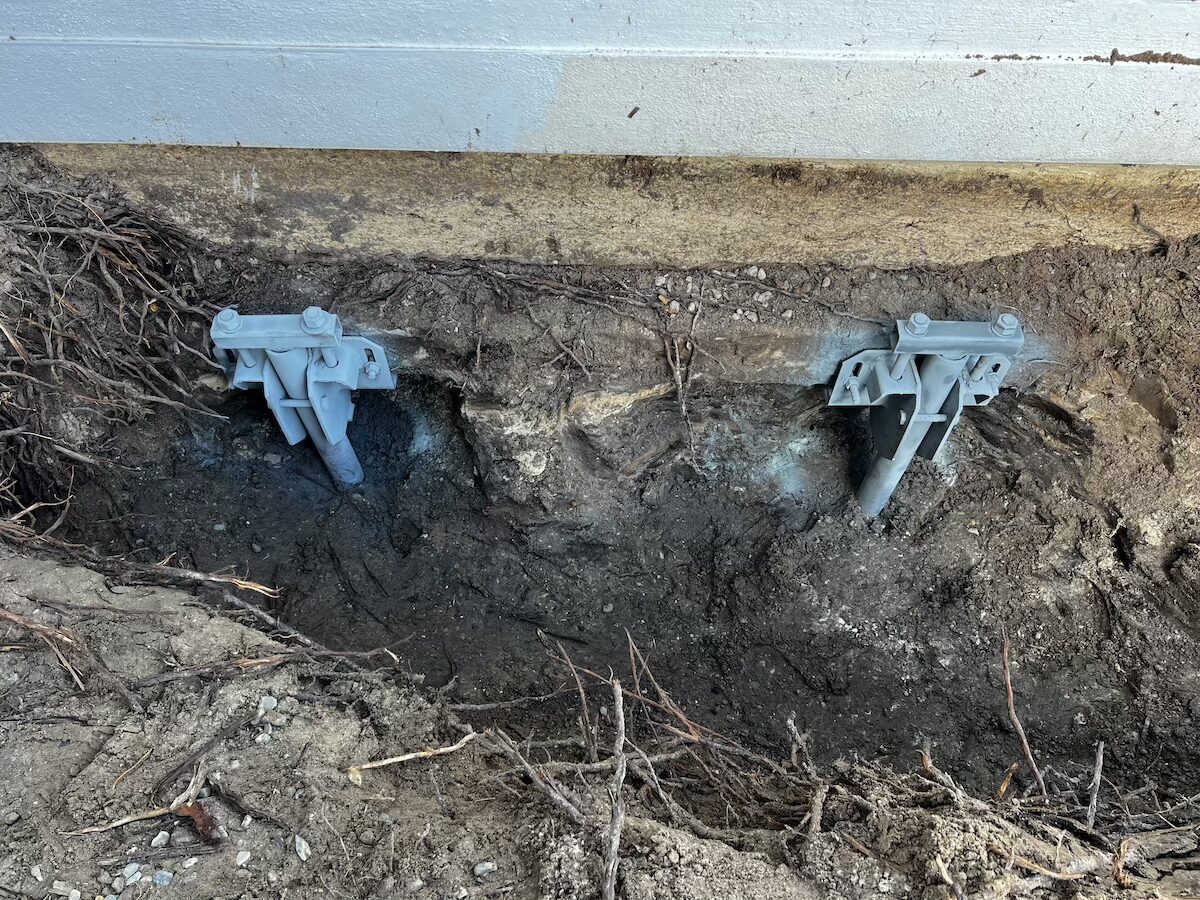

Foundation Underpinning System
- Installed eight galvanized underpinning piles equipped with seventeen galvanized extensions to achieve the necessary torque resistance and depth.
- Used precision torque monitoring to ensure each pile achieved optimal bearing capacity without destabilizing nearby structures.
- Achieved full load transfer to competent strata, halting foundation movement and restoring long-term structural stability.
Seawall Reinforcement System

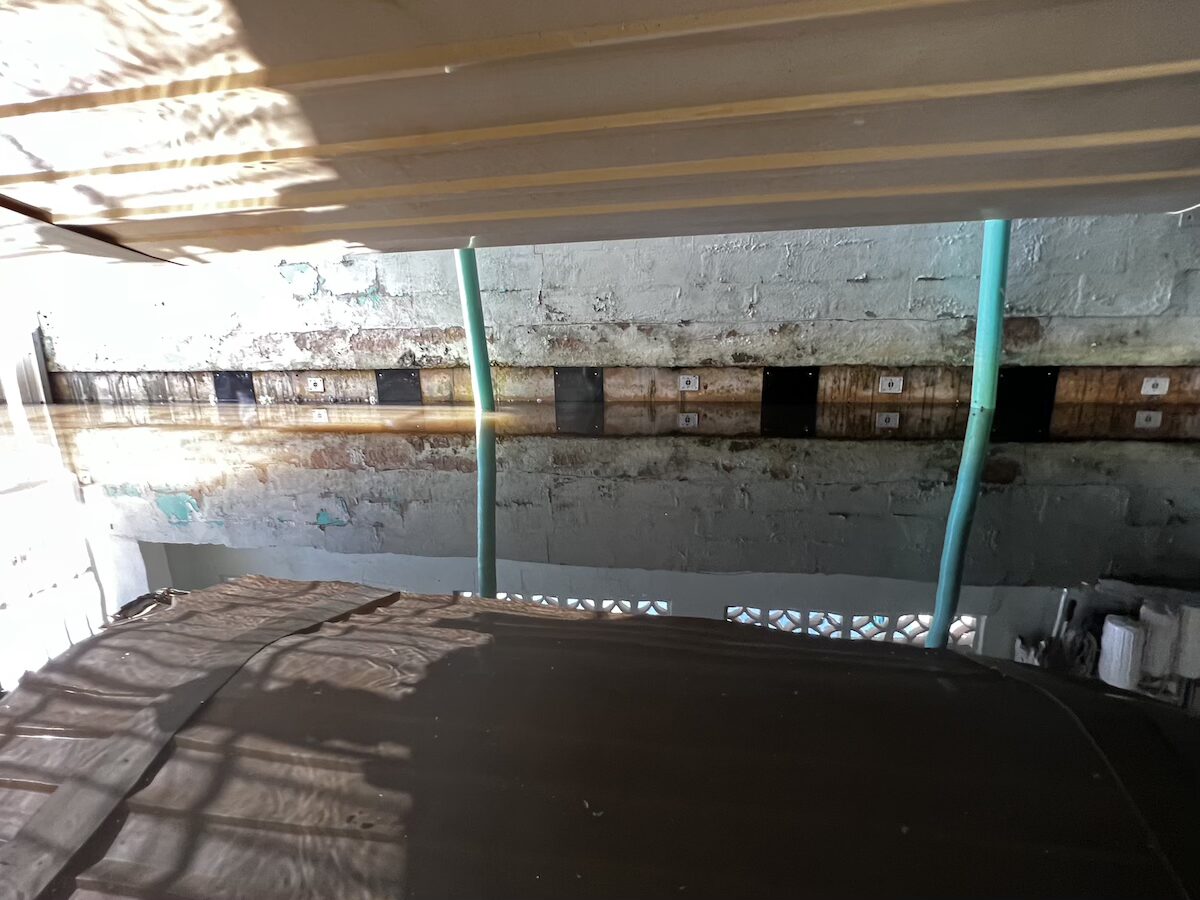

Following the underpinning work, our focus shifted to the seawall rehabilitation phase. We installed a marine-grade erosion guard system designed specifically for Florida’s coastal soil composition and hydrodynamics.
- One-foot-wide vinyl barrier sheets were anchored over each joint between seawall panels, extending from 12 inches below the mudline to one foot beneath the cap, effectively sealing all open seams.
- This shield prevented soil washout—a common precursor to sinkhole formation and seawall undermining.
- Five hydrostatic pressure relief filters were installed to vent trapped groundwater, reducing lateral pressure and extending the wall’s service life.
Environmental protection remained paramount. All construction activities were planned to minimize turbidity, protect local aquatic life, and preserve the shoreline’s integrity.
Verified Outcomes and Structural Benefits of Helical and Underpinning Systems
- Immediate Structural Stabilization — Foundation movement fully halted, restoring integrity and safety.
- Extended Seawall Lifespan — Reinforcement and filtration systems significantly reduced hydrostatic pressure and soil loss.
- Eco-Conscious Execution — All work conducted with minimal disruption to the local ecosystem.
- Long-Term Durability — Galvanized steel components and marine-grade vinyl ensure corrosion resistance and decades of reliable service.
- Client Confidence Restored — The homeowner gained peace of mind knowing their investment is protected from future storm and erosion impacts.
This project highlights the synergy between modern underpinning engineering and coastal resilience design—a proven approach that restores the safety and longevity of waterfront properties across Southwest Florida.
Verified Structural Performance and Coastal Resilience Outcomes
- RS2875.217 10″ × 12″ × 84″ Galvanized Round Shaft Lead Section
- RS2875.217 84″ Galvanized Round Shaft Extensions
- Galvanized Underpinning Bracket
- Marine Vinyl Seawall Erosion Guard Sheets
- Seawall Hydrostatic Pressure Relief Filters
Engineering Answers About Underpinning and Seawall Repair in Bokeelia, Florida
Why is underpinning critical for coastal homes experiencing foundation settlement?
Underpinning re-establishes structural support beneath foundations compromised by erosion, flooding, or shifting soils. In coastal zones like Bokeelia, where tidal forces and fluctuating groundwater can destabilize subgrade layers, underpinning transfers loads to stable bearing strata, ensuring long-term stability and preventing further settlement.
How does the marine erosion guard system improve seawall performance?
What role do hydrostatic pressure relief filters play?
How does Coastal Foundation Solutions ensure environmental compliance?
Every project adheres to state and local environmental regulations, employing silt screens, turbidity barriers, and low-emission equipment to protect marine habitats during construction.
How long do underpinning and seawall reinforcements last in coastal environments?
