Emergency Helical Anchor Repairs at Tin City, Naples, Florida
Restoring Structural Stability to a Landmark Waterfront Destination
Tin City, Naples: Emergency Helical Anchor Repairs Overview
Location: Tin City Waterfront, Naples,Florida Project
Type: Emergency Structural Stabilization & Helical Anchor
Installation
Client: Tin City Property Management / Waterfront Retail Owners Association
Completion
Date: July 2024
Engineer of Record: Coastal Foundation Solutions

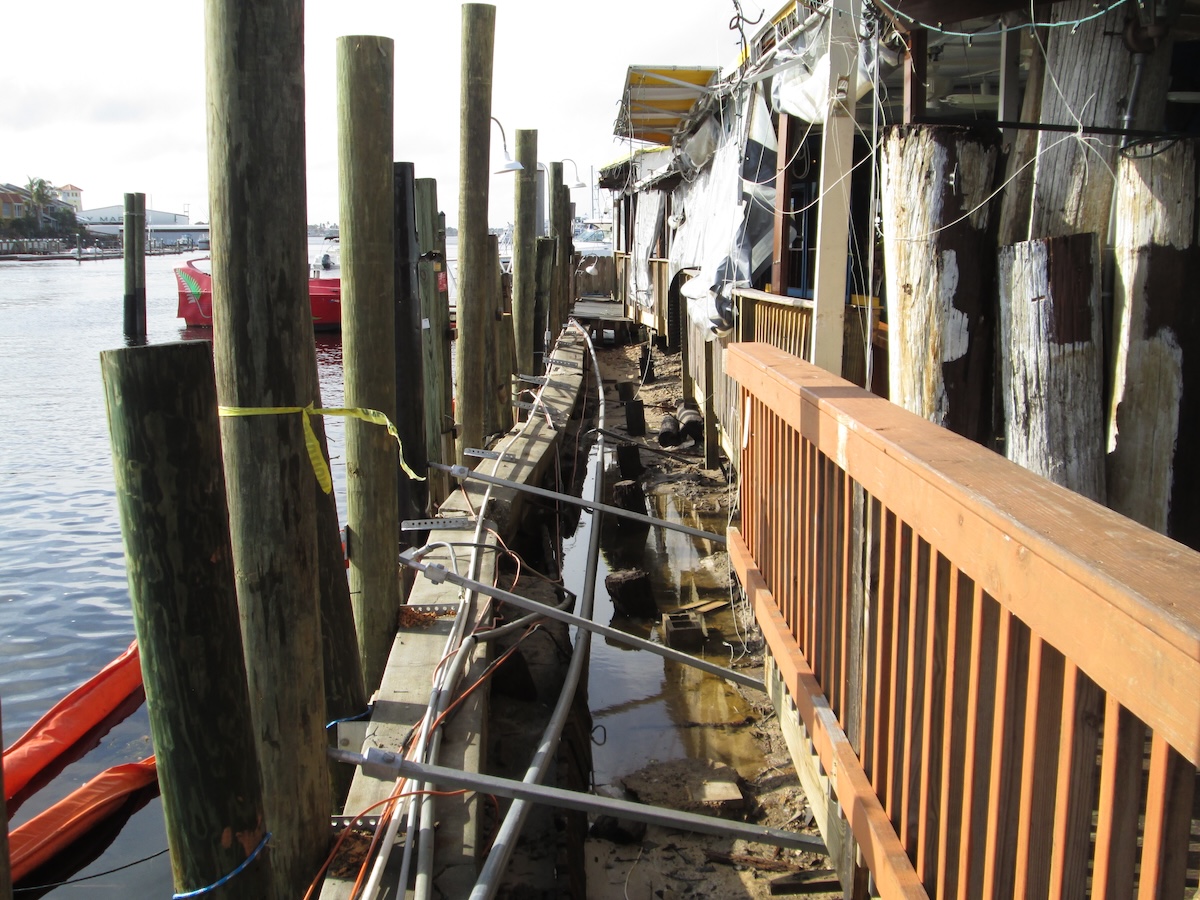

Situated along the Gordon River, Tin City is one of Naples’ most recognizable waterfront attractions, featuring historic dockside buildings that house restaurants, retail shops, and charter operations. After years of tidal exposure and multiple storm seasons, sections of the property’s boardwalk and seawall support system showed visible settlement, cracked decking, and lateral movement.
Following several high-tide flooding events in early 2024, property managers requested an emergency inspection to address worsening foundation instability. The challenge: execute stabilization quickly without disrupting ongoing business operations or further damaging the fragile waterfront structures.
Coastal Foundation Solutions: Assessment and Structural Analysis
A comprehensive site inspection revealed several structural issues:
- Soil Erosion: Progressive washout beneath walkways and deck supports due to tidal cycles and storm surge.
- Lateral Movement: Timber and concrete piles along the seawall exhibited horizontal deflection toward the water.
- Anchor Failure: Several older tieback anchors had corroded or disconnected from the seawall bulkhead cap.
- Differential Settlement: Deck framing and pier connections showed uneven elevations, indicating soil loss beneath support points.
Subsurface testing confirmed soft, silty marine soils extending approximately 22 feet below grade before reaching denser strata. Traditional driven or auger-cast replacements were impractical because of limited access, active retail operations, and environmental permitting restrictions for the Gordon River shoreline.
Coastal Foundation Solutions engineers recommended a rapid-response helical anchor repair plan using SS200 series helical tiebacks to restore structural alignment and prevent further movement.
Engineered Solution: Restoring Stability with Helical Anchors
The solution involved installing galvanized helical anchors at strategic points along the seawall and under the wooden boardwalk decking. These anchors were selected for their vibration-free installation, corrosion resistance, and ability to provide immediate tension resistance once torqued to load capacity.
Key components included:
- Helical Tieback Anchors: SS200 1.75″ square shaft anchors with 8”-10”-12” triple-helix configuration.
- Hot-Dip Galvanized Finish: Ensured long-term corrosion protection in saltwater exposure.
- Wall Bracket Assemblies: Custom-designed to fit beneath the existing seawall cap and deck framing.
- Torque Verification Monitoring: To confirm each anchor met design load (18 to 22 tons).
Executing the Solution: Step-by-Step Helical Anchor Installation
- Mobilization & Access Setup The Coastal Foundation Solutions team mobilized a compact, low-clearance hydraulic drive system capable of operating on the boardwalk deck without heavy equipment. Work areas were isolated using temporary barricades to maintain safe pedestrian access for Tin City visitors.
- Anchor Positioning Anchors were strategically positioned at 6–8 foot intervals along the seawall and beneath compromised decking zones. Each installation point was pre-drilled through existing timber or concrete beams.
- Helical Installation Using a hydraulic torque drive, anchors were rotated into the soil until the design torque resistance was achieved—averaging 5,000 to 6,500 ft-lbs. per anchor. Torque correlation confirmed load capacities of 20 tons per anchor.
- Load Testing & Tensioning Each installed anchor was load-tested to 1.5 times its design tension capacity to verify performance. Anchors were then tensioned and secured using custom plate assemblies against existing framing.
- Restoration & Finishing Decking was repaired, support beams were re-leveled, and all disturbed areas were sealed to prevent water infiltration. The work was completed within five days, with zero interruption to Tin City’s operating businesses.
Project Challenges
1. Active Commercial Environment
Tin City remained open throughout construction, requiring work to be done in phased sections with tight safety control. The vibration-free nature of helical anchors allowed installation without disturbing customers or merchants.
2. Limited Access
Traditional piling rigs could not reach certain dock and walkway areas. The team utilized portable hydraulic equipment and hand-assisted installation methods, ensuring precision in tight spaces.
3. Marine Environmental Conditions
Tidal fluctuations required careful scheduling to install anchors during low tide windows. Temporary cofferdams and dewatering pumps were used to maintain a stable work area while minimizing environmental impact.
4. Structural Constraints
Existing 40-year-old timber framing limited the load distribution options. Engineers designed custom anchor brackets to fit within the original framing geometry while achieving required tension loads.
Proven Results: Restoring Safety and Strength at Tin City
Upon completion, the helical anchor system provided immediate stabilization for the affected seawall and boardwalk. Key performance outcomes included:
- No further lateral movement detected during post-installation monitoring.
- Re-leveled decking with less than ¼” differential across spans.
- Enhanced load distribution, preventing localized stress failures.
- Corrosion protection suitable for the marine environment.
Follow-up inspections six months later showed zero structural movement or anchor slippage, validating the long-term success of the emergency repair.
Why Helical Anchors Are the Preferred Solution for Waterfront Repairs
Helical anchors have become the go-to foundation solution for Florida’s waterfront and marine structures because they:
- Install rapidly with no vibration or soil spoils.
- Perform reliably in soft or saturated soils.
- Provide immediate tension and compression capacity.
- Eliminate heavy equipment needs, ideal for tight or sensitive locations.
- Last decades with hot-dip galvanization and stainless-steel hardware.
For emergency stabilization projects like Tin City, they deliver both speed and structural certainty — crucial for commercial properties exposed to tidal cycles and public traffic.
Building Florida’s Future on Stronger Foundations
The Tin City repair project demonstrates how helical anchor systems can deliver rapid, reliable, and environmentally responsible results for coastal infrastructure. By combining field-tested technology with precise engineering, Coastal Foundation Solutions helped preserve one of Naples’ historic waterfront landmarks — ensuring safety, stability, and business continuity.
Why Helical Anchors Are the Preferred Solution for Waterfront Repairs
Helical anchors have become the go-to foundation solution for Florida’s waterfront and marine structures because they:
- Install rapidly with no vibration or soil spoils.
- Perform reliably in soft or saturated soils.
- Provide immediate tension and compression capacity.
- Eliminate heavy equipment needs, ideal for tight or sensitive locations.
- Last decades with hot-dip galvanization and stainless-steel hardware.
For emergency stabilization projects like Tin City, they deliver both speed and structural certainty — crucial for commercial properties exposed to tidal cycles and public traffic.
Building Florida’s Future on Stronger Foundations
The Tin City repair project demonstrates how helical anchor systems can deliver rapid, reliable, and environmentally responsible results for coastal infrastructure. By combining field-tested technology with precise engineering, Coastal Foundation Solutions helped preserve one of Naples’ historic waterfront landmarks — ensuring safety, stability, and business continuity.
Everything You Need to Know About Helical Anchor Repairs in Florida
What are helical anchors used for in marine construction?
Helical anchors provide lateral and vertical support for seawalls, docks, and boardwalks. They resist soil movement and water pressure without vibration or heavy machinery.
How long does it take to install helical anchors for emergency repairs?
Most emergency stabilization projects can be completed within 3–7 days, depending on site access and soil depth.
Are helical anchors safe for saltwater environments?
Yes. Anchors made from hot dip galvanized or stainless steel resist corrosion and maintain long-term performance in marine conditions.
Can helical anchors be installed under existing structures?
Absolutely. Compact torque-drive systems allow installation beneath decks, seawalls, or existing foundations without removal or demolition.
Who installs certified helical anchors in Southwest Florida?
Coastal Foundation Solutions, based in Cape Coral, provides licensed helical anchor and foundation repair services throughout Naples, Bonita Springs, Fort Myers, and surrounding areas.
