Helical Pile Foundation Support for Coastal Home Addition
Fort Myers Beach
Project Overview
Following the devastation caused by Hurricane Ian in Fort Myers Beach, Coastal Foundation Solutions was selected to engineer and install a resilient foundation system for a coastal home addition. The aim: deliver a stormproof foundation that meets or exceeds all regulatory standards for flood zones, uplift, and coastal erosion.
Coastal & Geotechnical Challenges
This site posed multiple interrelated challenges typical in coastal Florida:
- Loose, unsaturated sandy soils along with a high-water table reducing nearsurface bearing capacity.
- Elevated uplift forces due to storm surge and strong wind loads during hurricanes.
- Strict building codes in Fort Myers Beach and Lee County for flood elevation, foundation depth, and coastal resilience.
- Longterm durability required in harsh marine environment (saltwater exposure, corrosion, soil erosion).
To satisfy these constraints, a deep foundation system with engineered piles was necessary — one that resists both vertical load and uplift and is built to last.

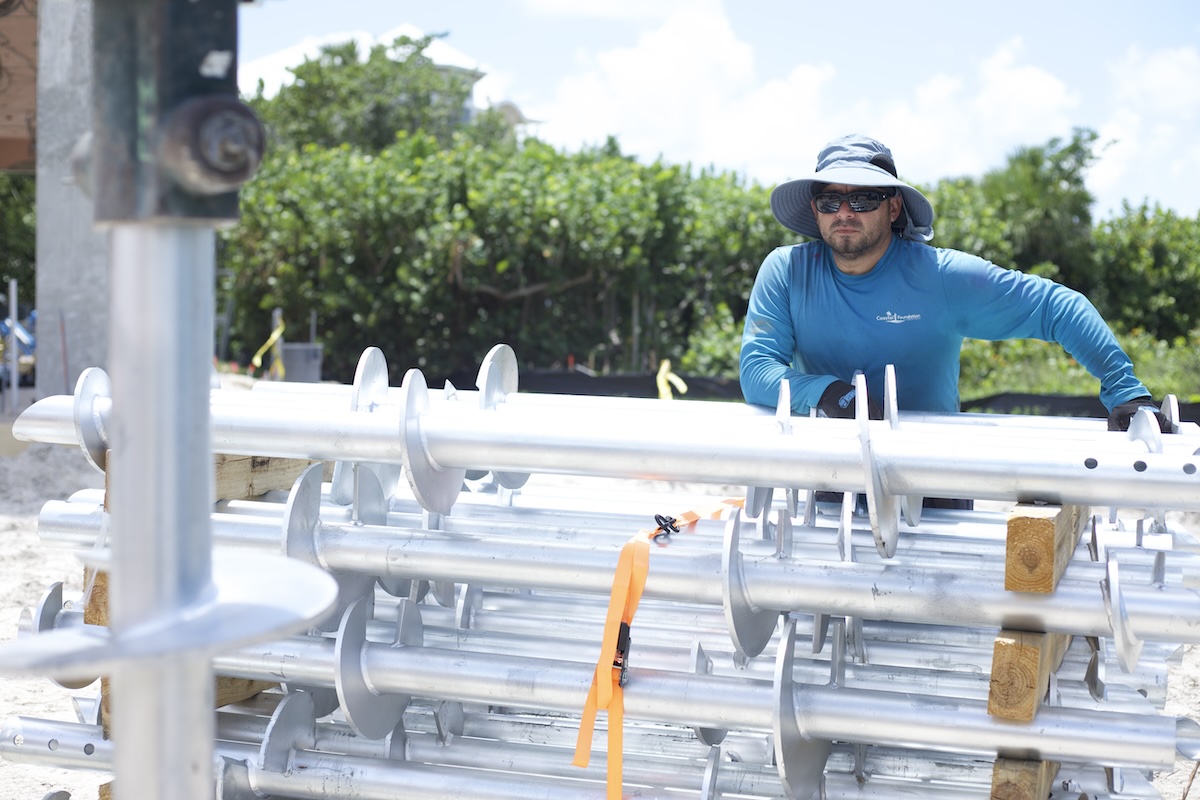

Solution: Helical Pile Foundation Installation
Helical piles (also known as screw piles or helix anchors) were selected as the optimal foundation solution. Key reasons:
- Ability to load through weak soils into competent loadbearing strata.
- Resistance to both compression (vertical load) and uplift (storm surge, wind uplift).
- Faster installation with minimal site disturbance; less environmental impact.
- High corrosion protection possible with galvanized shafts— essential in coastal/marine zones
Engineered Performance Data and Installation Specifications
Parameter | Value |
Location | Fort Myers Beach, Florida (Lee County) |
Number of Helical Piles Installed | 51 |
Depth per Pile | 21–28 feet (to reach stable strata) |
Load Capacity per Pile | Up to 16 tons, engineered for combined loads (dead, live, wind, uplift) |
Materials | Lead Section: 110RS2875.217 – 10″×12″×14″, 84″ galvanized shaft; Extensions: 246RS2875.217 – 84″ galvanized round shaft extensions |
Corrosion Protection | Hotdip galvanized shafts, marinegrade materials, full sealing at connections |
Installation used hydraulic torque equipment with realtime verification via torque and depth readings, ensuring compliance with engineering tolerances and coastal building codes.
Why This Project Is a Prime Example of Seawall Repair & Foundation Stabilization
- Demonstrates how coastal foundations, when properly engineered, protect not only structures but adjacent seawalls and shoreline infrastructure from undermining and erosion.
- Shows how to specify helical piling as a complement to seawall repair efforts—foundation support and shoreline stabilization often work together.
Verified Outcomes and Structural Benefits of Helical Pile Foundation
- The new house addition now exceeds code requirements for flood elevation, wind load, and uplift resistance.
- Longterm performance anticipated, with minimal maintenance: corrosion protection, stable foundation, reduced erosion risk.
- Reinforcement of the home’s foundation reduces the likelihood of seawall failure or exacerbated shoreline erosion.
- Enhanced property resilience against future storms, flooding, and coastal degradation.
Engineering Answers About Helical Pile Foundations in Fort Myers Beach, Florida
What makes helical piling better than traditional concrete footings in coastal Florida?
Helical piles reach stable substrate below weak soils, resist uplift and lateral loads, can be installed quicker, and offer better corrosion protection—all critical in flood and storm surge zones along Florida’s coast.
How much does helical piling cost per foot or per foundation in Southwest Florida?
Cost depends on soil conditions, depth needed, number of piles, local permit fees, and corrosion protection. As a rough guideline, projects with 2030 ft depth and engineered capacity (e.g. 1020 tons per pile) typically fall within [provide your local cost per linear foot or per pile if available]—contact us for a precise quote.
How long will a galvanized helical pile last in saltwater or marine environment?
With hotdip galvanization, correct material selection, and good design (avoiding crevice corrosion, ensuring secure connections), service lifespans of decades are achievable—even in saltwater spray zones. Regular inspections help.
Is a licensed contractor required for seawall repair and foundation work in Florida?
Yes. Florida requires contractors to hold appropriate licenses (marine, foundation, deeppile, etc.). Coastal Foundation Solutions holds Florida License #CBC1252534 & #CBC1263386, and certifications required for helical piling and marine contracting.
How do helical piles integrate with seawall repair or shoreline stabilization?
Seawall repair prevents erosion and waveaction damage; helical piles stabilize the structure foundation and prevent settlement, uplift, and undermining. Together, they provide a cohesive solution for coastal homes along Fort Myers Beach, Cape Coral, and all of Southwest Florida.
