CASE STUDY
Stabilizing Commodore Club Moorings Bay Seawall
How Battered Piles & Hybrid Design Saved a Waterfront Community
Project Snapshot: Commodore Club of Moorings Bay, Naples
Location: Moorings Bay, Naples, Florida — a highvalue waterfront condominium community with boat docks and exposure to tidal variation through Doctors Pass.
- Client Type: Condominiums / HOA / shared seawall behind common docks.
- Initial Scope: Install helical anchor tiebacks for new seawall.
- Soil Conditions: Geotechnical reports suggested acceptable soils, but test helicals to ~65 feet failed to reach required torque—indicating soft subsoil, possible fill, or inconsistent limestone conditions.
Key Challenge: When Helical TieBacks Don’t Deliver
- Helicals installed to design depth (65 ft) underperformed—could not reach required engineered load.
- Delay in project while engineers assessed alternative methods.
- Need for both vertical support (to resist settlement) and lateral/horizontal resistance (from wave, wind & boat loads).
- Restrictive access: HOA docks, waterfront setting, environmental sensitivity—minimal disruption required.
Hybrid Structural Solution: Battered/Vinyl King Piles
“Seawall Savers” Design Strategy
- Battered / King Pile Installation:

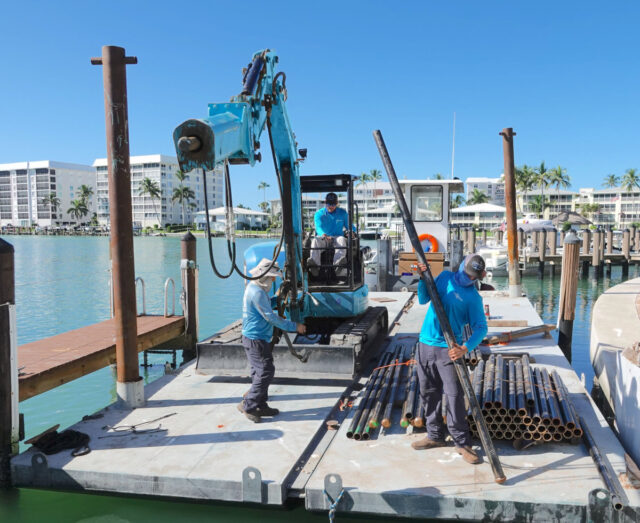

• Driven at angle (battered piles) to improve lateral resistance, installed to refusal in competent limestone.
• Schedule 80 pipe piles (3½inch), reinforced with 5,000 PSI marine concrete. - Truline Vinyl Panel System:
• Vinyl panel cladding over reinforced concrete core protects steel concrete core from saltwater corrosion and marine growth.
• Extends service life; resists UV, salt, barnacles. - Pin Pile Supplementation:
• Smaller diameter galvanized pin piles (34″) used in 78 locations where angle and spacing permitted.

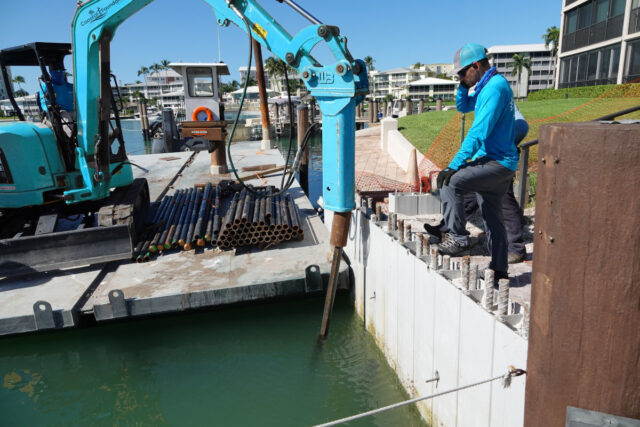

• Lead piece with sacrificial bit drills into limestone; welded extensions achieve final pile length. - Installation Logistics & Marine Access:

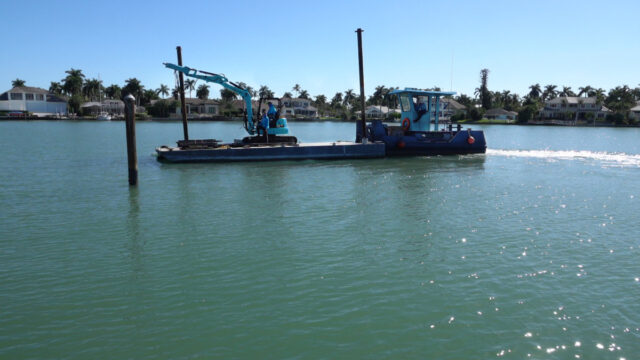

• Use of modular barges for water access where shore access limited.
• USCGapproved, biodegradable hydraulic fluids used in marine crafts and equipment.
Outcome & Performance Metrics
Metric
Result / Benefit
Structural Load / Stability
Achieved engineered design load via battered piles; seawall resecured laterally and vertically.
Lifespan Expectation
With vinyl panels + marinegrade concrete + corrosionresistant materials, expected 3050 years of service.
Project Duration & Disruption
Design redesign took a few weeks; installation minimized HOA operations disruption; docks and residences maintained access.
Cost Savings
Hybrid approach significantly less expensive than full sheetpile wall replacement; avoided cost of full replacement.
Maintenance Reduction
Reduced exposure of steel, fewer corroding components, simplified access for inspections.
Scope: HOA & Marina Relevance
Seawall Savers™ tailored this hybrid solution specifically for scenarios common to:
- HOAs managing shared seawalls and boat docks
- Marinas or condominium docks exposed to tidal and wave loads
- Waterfront properties with soft or fill soil beneath seawalls
- Sites with limited land access where marineside work is required
Frequently Asked Questions
Battered piles are driven at an angle into stable substrate (e.g. limestone) to provide both lateral and vertical support. HOAs need them when soil conditions prevent helicals from achieving required torque or load.
It encases a concrete core, protecting it from direct exposure to salt, barnacle damage, UV, and moisture. It reduces corrosion of reinforcement and reduces maintenance.
Refusal means the pile is driven until it cannot penetrate further (often until stable rock or compact limestone). It ensures load is transferred to strong substrate rather than weak soils.
With quality materials (marine concrete, stainless or galvanized steel, vinyl panels), such repairs are expected to last 3050 years. Maintenance includes periodic inspection of joints, panel integrity, pile exposure, and weep hole / drainage performance.
Yes. It’s especially suited for Naples, Cape Coral, Fort Myers, Bonita Springs, Punta Gorda, Port Charlotte and similar coastal zones, where soil conditions, salt exposure, and tidal ranges are comparable.
