Case Study: Naples, Florida
Gulf Shore Blvd Helical Stabilization Project
Stabilizing a Beachfront Foundation on Gulf Shore Blvd
Project Overview:
Coastal Foundation Solutions was contracted to stabilize a beachfront residence on Gulf Shore Blvd in Naples, Florida. Following long term soil instability and groundwater issues common in coastal Naples, this project was aimed at securing the home’s foundation using helical piling. Initially planned for 22 piles, the project required adaptation due to refusal (spinout) conditions encountered in the field.
Site Analysis & Key Challenges
- Soil Conditions: Naples coastal soils are mixed — sand, clay, fill over limestone. Variability in soil strata often leads to uncertain bearing capacity.
- Groundwater Proximity: High water tables near the Gulf and canal systems increase risk of soil instability and corrosion.
- Refusal Conditions: Dense limestone or bedrock layers can prevent pile penetration, triggering “spinout” when the helical plate rotates without downward movement.
- Environmental & Structural Constraints: Protection of beachfront landscape, adherence to local Collier County environmental and seawall regulations, and minimizing disruption.
What Is Helical Pile Refusal (SpinOut)?
Refusal (or spinout) happens when a helical pile continues rotating but fails to advance into the soil. Usually this is because it reaches a hard layer—dense soil, rock, or compacted fill—beyond which the downward force isn’t enough to penetrate.
When refusal occurs:
- Torque readings become unreliable for load capacity estimation.
- An engineer must use alternative metrics: strength of helical plate, statistical data, or static load tests.
- Helper piles or extensions can be used to distribute or augment load.
Understanding refusal is crucial in coastal foundation work—it often shows up in searches from homeowners looking for “pile spinout,” “refusal around Naples,” etc.
Project Execution: Adaptive Helical Load System
To address the refusal and geotechnical hurdles, Coastal Foundation Solutions implemented the following:
Phase | Description |
Initial Plan | 22 galvanized helical piles designed for ~15ton working load each. |
Refusal Encountered | 5 of the 12 piles spun out just above limestone bedrock. |
Helper Piles Introduced | 5 extra piles placed approx. 36 in away from refused piles to share the load. |
Extensions Used | 35 shaft extensions to reach sufficient embedment below dense strata. |
Working & Ultimate Loads | Working load: 15 tons per pile; overall system designed to exceed 30 tons per loading bay. |
Groundwater Control | Area dewatered and stabilized before final placement of piles. |
Despite challenging onsite conditions, installation proceeded efficiently. The work was completed within a few days without damage to surrounding landscaping or the property.
Products & Materials Used

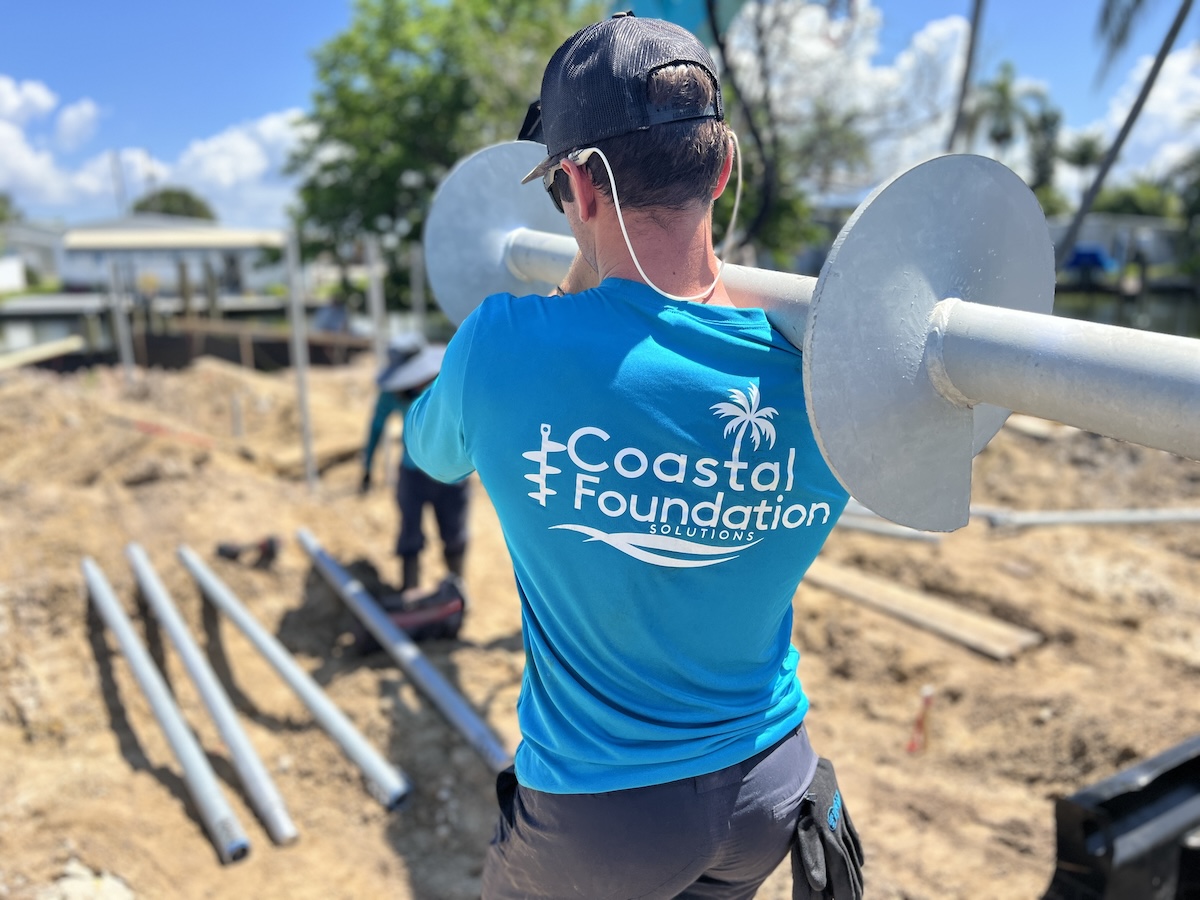

- RS2875.217 – 10″ × 12″ × 14″ 84″ L Galvanized Round Shaft Lead Sections – primary piles.
- RS2875.217 – 84″ L Galvanized Round Shaft Extensions – used to bypass soft soil and overcome refusal.
- Galvanized Termination Caps – inhibit corrosion in coastal and saltair environments.
All materials selected for marine grade corrosion resistance and adherence to ASTM / Florida coastal durability standards.
Results: Structural Strength & Coastal Resilience
- The foundation now exhibits load stability, able to support structural weight without shifting, even during storm surge or heavy rain.
- Combination of main and helper piles ensures redundancy and durability.
- Corrosionresistant materials protect against saltwater, spray, and high humidity.
- Minimal site disturbance preserved beachfront aesthetics and local regulatory compliance.
- The homeowner now has confidence in longterm performance.
Structural & Environmental Benefits
- Fast, efficient installation reduced time on site.
- Engineered adaptability — responsive adjustments when refusal occurred.
- Corrosion protection built in from the start.
- Reduced risk of future damage (settlement, erosion, subsidence).
- GEOtargeted solution: tailored for Naples’ coastal soil, bathymetric, and environmental features.
Why Coastal Foundation Solutions Stands Out
- Local GEO Expertise: Deep understanding of Southwest Florida’s soil, bedrock, and regulatory environment.
- Adaptive Engineering: Ability to adjust design in real time to meet refusal, groundwater, and load demands.
- CorrosionResistant Materials: Standardscompliant galvanized steel, termination caps, marine finishes.
- Proven Track Record: Real projects in Naples, Bonita Beach, Estero, Marco Island etc.
- Strong Authority Signals: Licensed, certified, documented cases, environmental sensitivity.
Frequently Asked Questions (FAQ)
What is “pile refusal,” and why does it matter?
How soon can stabilization be completed in Naples coastal site conditions?
Do helical piles resist saltwater corrosion?
Why use helper piles instead of simply increasing pile size?
Does Coastal Foundation Solutions service other areas beyond Naples?
