Cellular Concrete Solutions for Florida Voids and Pipes
Stabilizing Weak Soils, Filling Voids & Restoring Bearing Capacity
Engineered Lightweight Fill for Residential, Commercial & Infrastructure Projects
Florida’s soil conditions—including loose sands, organic layers, underground voids, and high-water tables—create serious challenges for foundations and infrastructure. In many cases, traditional soil replacement or compaction methods are impractical due to access limitations, groundwater, or risk of further destabilization.
Coastal Foundation Solutions provides engineered cellular concrete solutions designed to fill voids, reduce settlement risk, and restore structural support beneath foundations, slabs, seawalls, roadways, and other load-bearing elements throughout Florida.
Cellular concrete is a lightweight, flowable cementitious material that delivers predictable strength without adding excessive weight to weak or saturated soils—making it ideal for Florida’s geotechnical environment.
What Is Cellular Concrete?
Lightweight, Flowable Fill for Ground Improvement Without Excavation
Cellular concrete (also called lightweight cellular concrete or foamed concrete) is a controlled-density cementitious material created by introducing pre-formed foam into a cement slurry. The result is a highly flowable, low-density material capable of filling voids and stabilizing soils without imposing excessive structural loads.
Once cured, cellular concrete provides:
- Uniform support
- Predictable compressive strength
- Reduced dead load on weak soils
- Excellent void-filling capability
- Resistance to washout and erosion
Cellular concrete performs exceptionally well in Florida because it is:
- Compatible with sandy and saturated soils
- Effective in high-water-table conditions
- Ideal for limited-access or no-excavation projects
- Suitable for large-volume void filling
Cellular Concrete Applications in Florida
Residential, Commercial, Marine & Infrastructure Uses
Residential Applications
- Filling voids beneath slabs and foundations
- Stabilizing soils under driveways and patios
- Supporting pool decks and lanais
- Mitigating erosion behind seawalls
Commercial Applications
- Under-slab stabilization for retail and warehouses
- Void filling beneath parking structures
- Floor support for industrial buildings
- Ground improvement prior to retrofits
Marine & Infrastructure Applications
- Seawall backfill stabilization
- Bridge approach settlement repair
- Roadway and sidewalk support

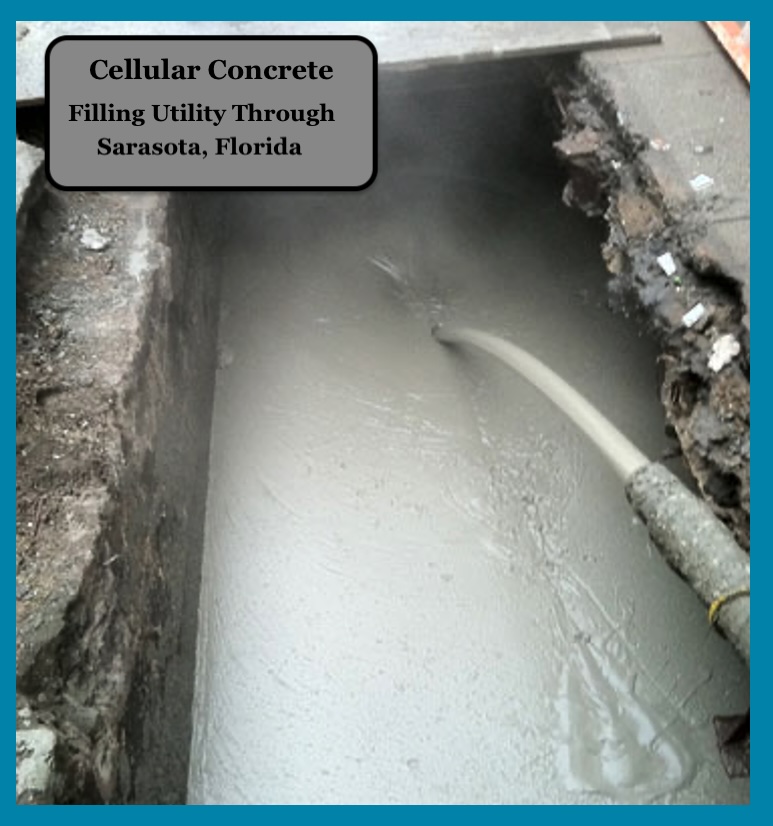

- Utility corridor void filling
Why Cellular Concrete Works Exceptionally Well in Florida
- Florida’s geology presents risks that cellular concrete is uniquely suited to address:
- Non-cohesive sandy soils
- High groundwater pressure
- Subsurface erosion and washouts
- Sinkhole-prone regions
- Large underground void formations
Cellular concrete directly addresses these issues by:
- Filling voids completely and uniformly
- Adding strength without excessive weight
- Reducing hydrostatic pressure effects
- Minimizing future settlement
- Providing long-term stability in wet environments
Materials & Mix Design
Engineered Density Based on Soil & Structural Requirements
Cellular concrete mix designs are engineered for each project, with densities typically ranging from 20 to 80 pounds per cubic foot, depending on required strength and load conditions.
Design considerations include:
- Soil bearing capacity
- Void size and geometry
- Groundwater conditions
- Structural loads above
This engineered approach ensures predictable performance and code compliance.
Engineering-Driven Installation Process
Controlled Placement, Verified Results
Every cellular concrete project includes:
- Site evaluation and subsurface assessment
- Volume and density calculations
- Controlled pumping and placement
- Monitoring to prevent uplift or displacement
- Post-placement verification
All installations meet or exceed:
- Florida Building Code (FBC)
- Applicable ASCE standards
- Engineer-of-record specifications

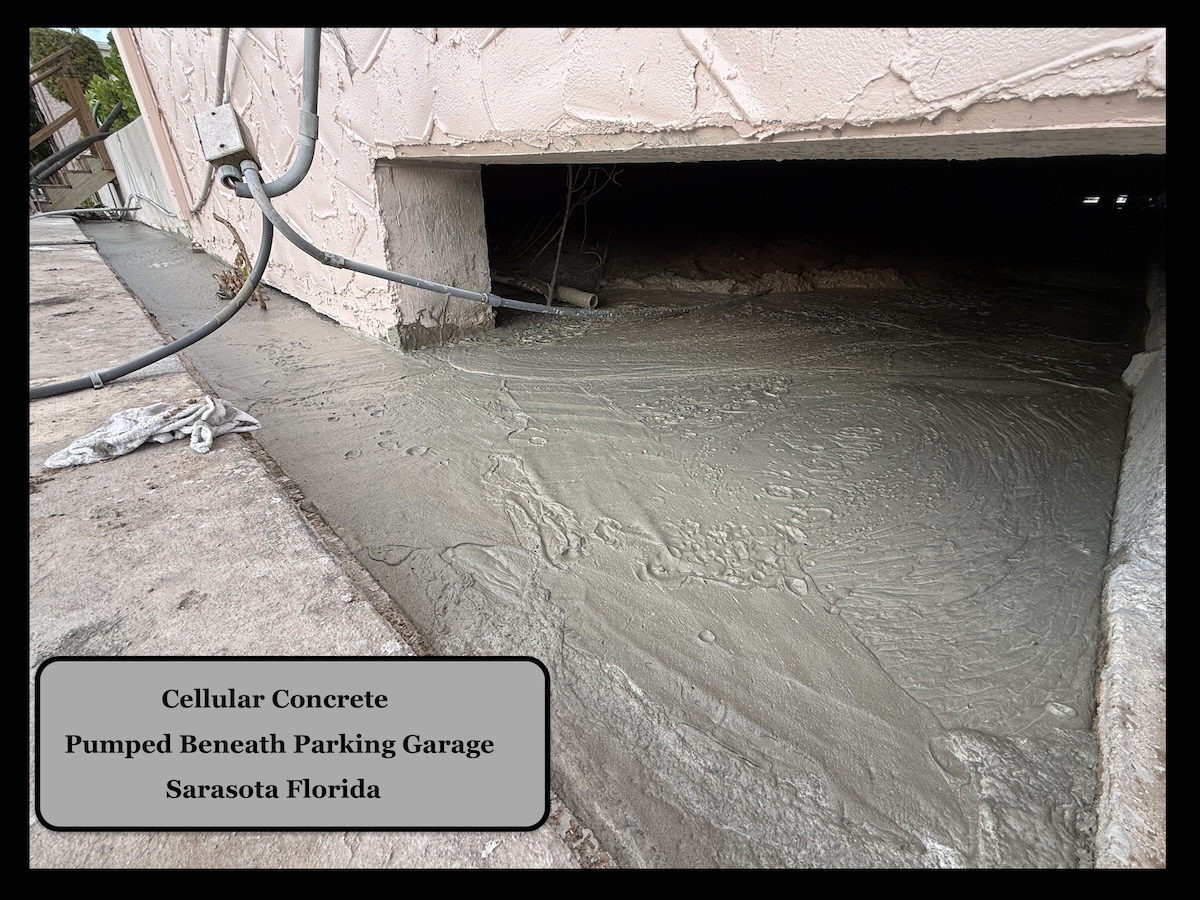

Short Case Study — Void Fill Beneath Parking Garage, Florida
A commercial property in Florida experienced slab settlement caused by subsurface voids in sandy soil. Excavation posed a risk to adjacent structures and operations.
Solution:
Coastal Foundation Solutions installed engineered cellular concrete beneath the slab to fill voids and restore uniform support.
Results:
- Voids fully filled with controlled-density material
- No additional settlement observed
- Minimal disruption to site operations
- Long-term stabilization achieved
This project demonstrates why cellular concrete is a preferred void-filling solution in Florida.
Why Choose Coastal Foundation Solutions for Cellular Concrete?
With 25+ years of Florida foundation and soil stabilization experience, Coastal Foundation Solutions delivers engineered lightweight fill solutions designed for Florida’s soils, water conditions, and structural demands.
Certified & Qualified
- Florida Certified Building Contractors: CBC1252534 & CBC1263386
- Certified Deep Foundation Contractor
- Certified Marine Contractor
Engineering-First Execution
- Engineered mix designs
- Controlled placement
- Code-compliant documentation
Strengthen Your Foundation from the Ground Up
If your structure shows signs of settlement, voids, erosion, or soil instability, cellular concrete may be the ideal engineered solution.
Schedule an Evaluation Today
