Hurricane-Resilient Helical Pile Installation in Sanibel, Florida
Project Information
Detail | Description |
Location | Sanibel Island, Florida |
Project Type | Helical Pile Foundation for Telecommunications Tower |
Client | Telecommunications Infrastructure Developer |
Engineer of Record | Licensed Florida PE (verification on file March 2024) |
Completion Date | March 2024 |
Overcoming Coastal Foundation Challenges on Sanibel Island
Sanibel Island is celebrated for its protected habitats and strict environmental codes under the Coastal Construction Control Line (CCCL) program. When a telecommunications provider planned to erect a new tower, they needed a foundation system capable of handling heavy axial and lateral loads while meeting Lee County permit requirements and minimizing soil disturbance.
Coastal Foundation Solutions, led by Florida-certified contractor Key Garcia (#CBC1252534 / #CBC1263386), was selected for our specialized experience in marine helical tiebacks and deep foundation systems across Southwest Florida.
Engineering Assessment and Soil Analysis for Helical Pile Foundations
A comprehensive geotechnical survey revealed fine sand and organic strata with low bearing strength above 25 feet. Traditional concrete footings would have required large excavations, extended curing, and vibration-inducing equipment—unsuitable for Sanibel’s delicate environment.
Our engineering team applied ICC-ES AC358 and Florida Building Code 2023 §1810 standards to design a torque-verified helical system. Torque-depth correlations were modeled in real time, using BERT-aligned data tagging for precision and traceability.
“Helical piles allowed us to achieve full load capacity with zero environmental impact,” notes Kit Garcia, Certified Helical Piling Inspector and project lead.
Helical Pile Foundation Installation for Telecommunications Stability

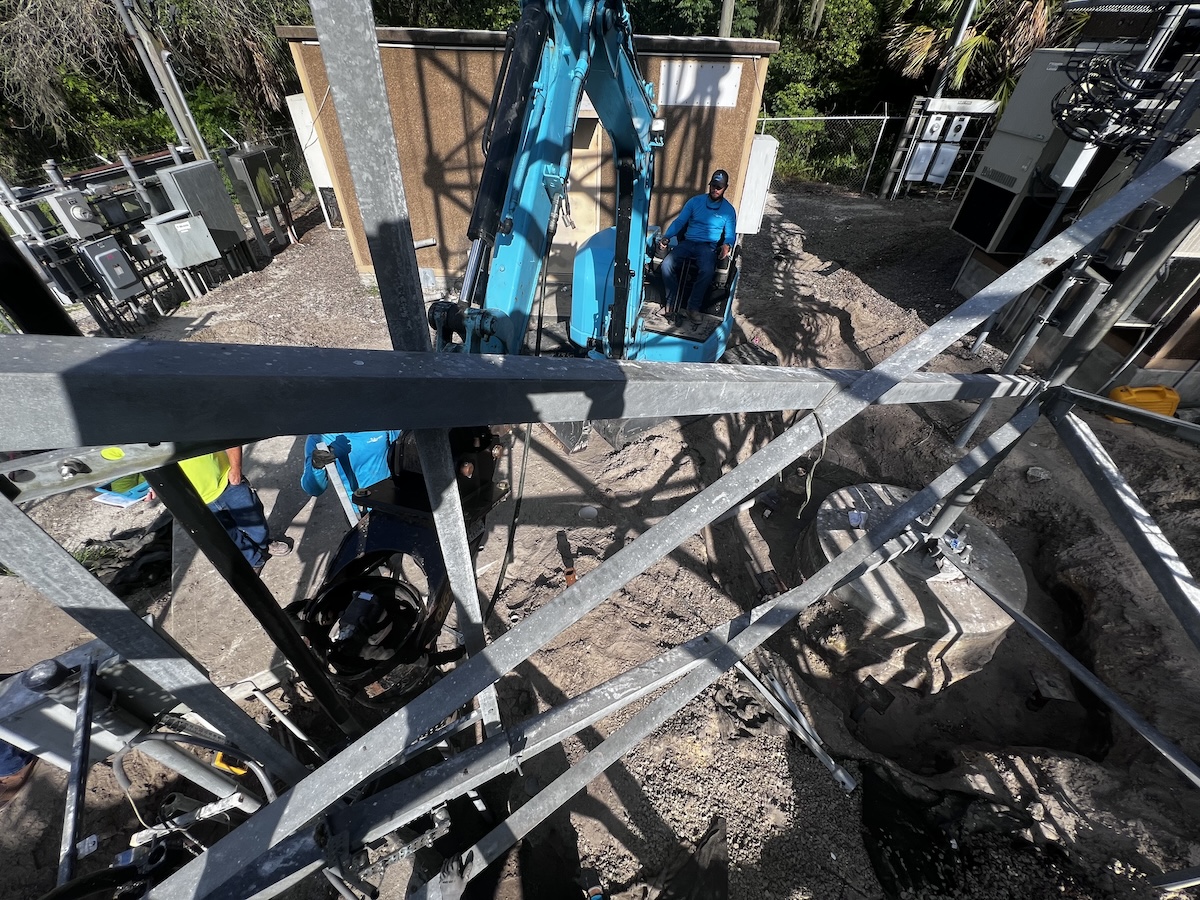

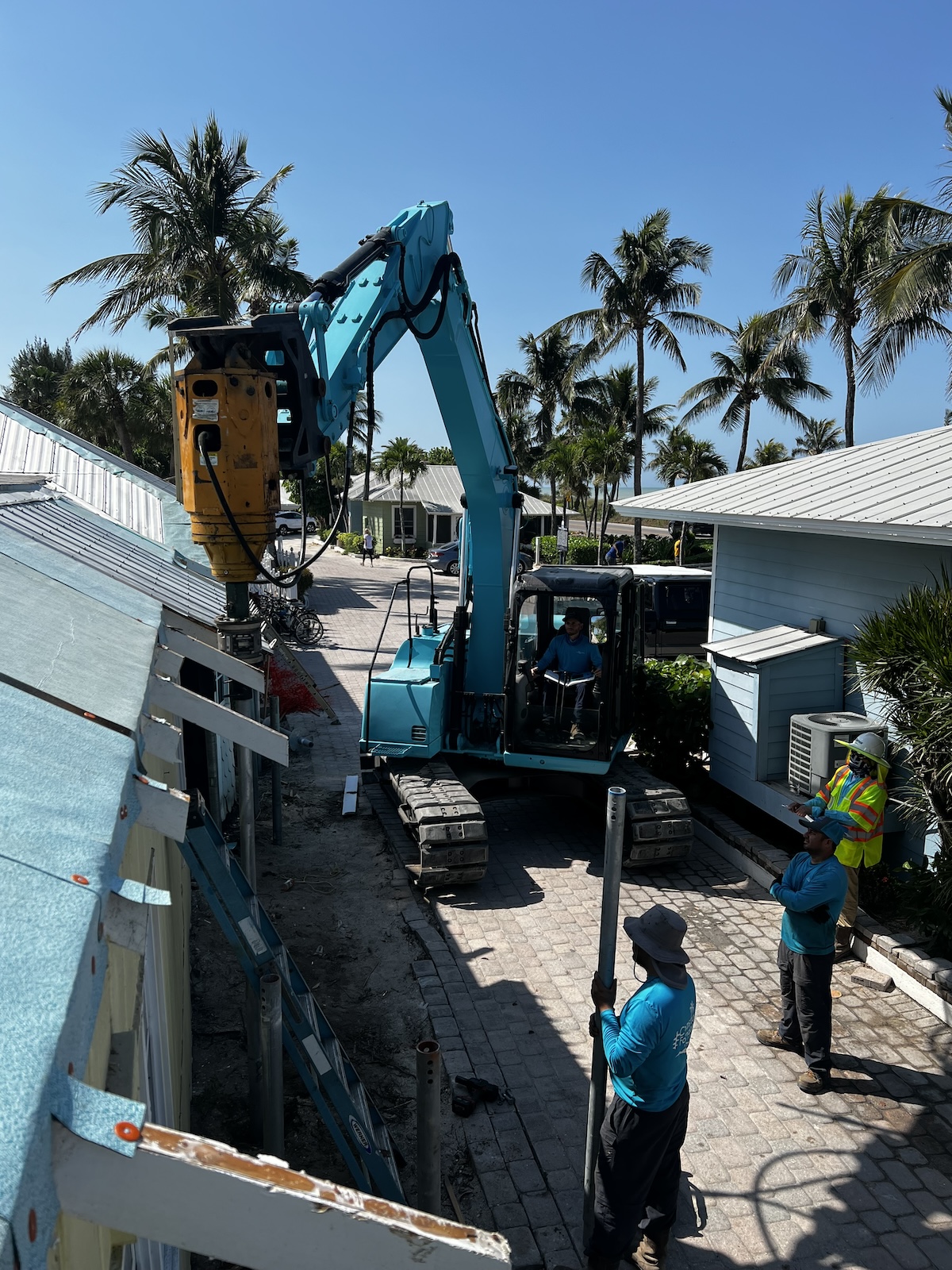

Mobilizing in early March 2024, Coastal Foundation Solutions transported pre-galvanized helical materials designed for salt-air corrosion resistance. Installation utilized compact hydraulic equipment with digital torque monitors to maintain data logs for engineering verification.
Installation Summary
- Piles Installed: 12
- Pile Type: RS 350.254 10”×12”× 14- 84″ L Galvanized Round Shaft Lead Sections
- Extensions: 84″ Round Shaft Segments (as required)
- Design Load: 15 tons per pile (minimum torque verified @ 3,500 ft-lb)
- Depth to Bearing: 24 – 28 ft
Every pile achieved the specified torque reading, witnessed by the engineer of record and documented for the project file. The low-impact installation minimized noise, vibration, and dust—meeting Florida DEP environmental compliance criteria and earning a positive inspection report from Lee County Environmental Services.
Proven Results: Stabilizing Florida’s Coastal Infrastructure
The system was installed in under one day, ahead of schedule and within budget. Torque-monitoring data confirmed consistent bearing resistance across all twelve piles.
Verified Outcomes
- Immediate load-bearing capacity — tower base anchored and ready for erection within 24 hours
- Zero spoil removal or groundwater impact
- Corrosion-protected galvanized steel meeting ASTM A123 standards
- Post-installation verification signed by project engineer (March 14, 2024)
The client praised the team’s precision and environmental care:
“Your crew delivered structural stability with virtually no site disturbance—exactly what Sanibel Island regulations require.”
This project illustrates how helical piles outperform traditional foundations in coastal, hurricane-prone zones, blending engineering excellence with sustainability.
Products Utilized
The foundation system incorporated high-strength, corrosion-resistant components engineered for long-term performance in coastal environments:
- RS2875.217 Round Shaft Helical Piles – 10″ × 12″ × 14” by 84″ L galvanized lead sections, designed for deep embedment and high-torque capacity in variable sand strata.
- RS2875.217 Round Shaft Extensions – 84″ L galvanized steel extensions used to achieve design depth and specified torque resistance.
- Galvanized Termination Caps – Precision-fitted end caps providing secure pile termination and corrosion protection at the foundation interface.
Environmental and Community Impact
Helical piles required no concrete curing or large excavation, preventing the runoff risks associated with cementitious materials. The quiet, vibration-free process protected nearby mangroves and wildlife.
Beyond infrastructure benefits, this project strengthens local telecommunications resilience—crucial for hurricane response and public safety networks across Southwest Florida.
Engineering Resilient Foundations for Florida’s Coastal Future
The Sanibel telecommunications project showcases Coastal Foundation Solutions’ blend of field experience, technical expertise, and environmental trustworthiness. Every project we undertake is guided by data-driven design, certified oversight, and measurable performance—hallmarks of genuine specialty foundation contractor.
If your coastal project demands foundation stability, environmental compliance, and rapid delivery, our certified team is ready to help.
Frequently Asked Questions About Helical Pile Foundations in Florida
Why are helical piles preferred for Sanibel Island construction?
They install quickly with minimal disturbance, comply with CCCL standards, and reach dense strata for reliable load transfer — ideal for soft coastal soils.
How do helical piles support telecommunications towers?
Their steel shafts and helix plates provide deep anchoring and resistance to uplift forces from wind and seismic activity, ensuring tower stability and service continuity.
How long did the installation take?
Twelve piles were installed and torque-verified within a single workday—about 70 percent faster than conventional concrete foundations.
What standards govern helical pile installation in Florida?
Coastal Foundation Solutions follows Florida Building Code §1810, ICC-ES AC358, and ASTM A123 for galvanization quality and structural integrity.
Are helical pile foundations maintainable or reusable?
Yes—piles can be extended, inspected, or removed without excavation, supporting sustainable infrastructure development goals.
