CASE STUDY
SANIBEL FLORIDA HELICAL INSTALLATION
HELICAL PILES FOR A PRIVATE RESIDENCE
PROJECT INFORMATION
ANALYSIS
The city of Sanibel is situated on Sanibel Island off the coast of Southwest Florida. Known for it’s beautiful beaches, endless amenities, and prime real estate, Sanibel is one of the most desirable places to live in the state. When a private residence on the island needed support for a new generator pad, our team was called.
SOLUTION

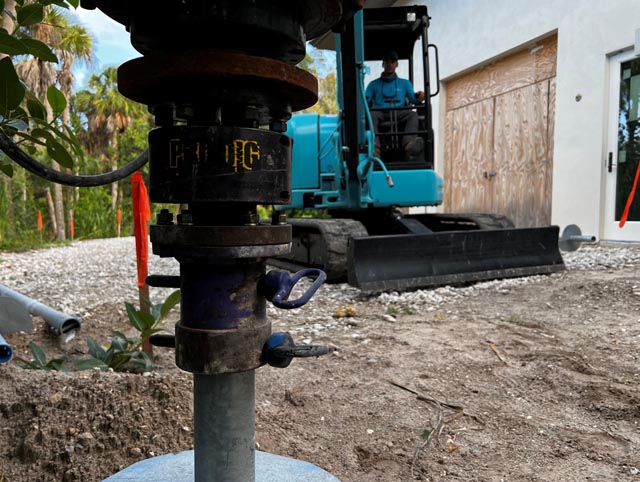

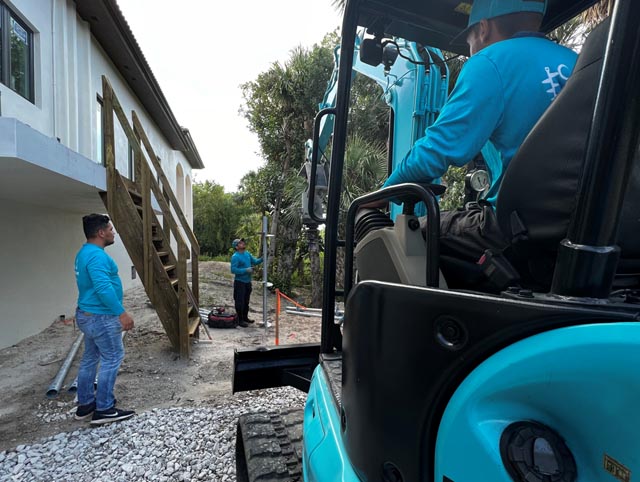

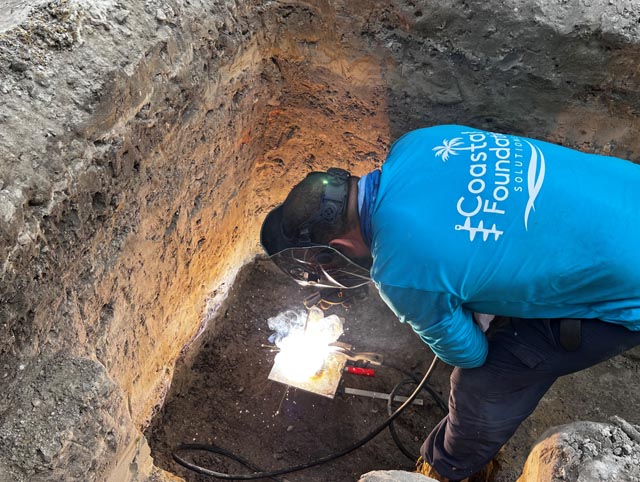

While working with M.A.B. Homes, LLC, a stabilization was formulated to use helical piles to provide the appropriate support needed prior to installing a new generator pad at this Sanibel Residence. New foundation piles were installed with a vertical alignment. These piles were initially installed uncut or capped with new construction brackets. Once the installation was complete, our team visited the job site at a later date to cut and cap new construction brackets on the helicals.
RESULT

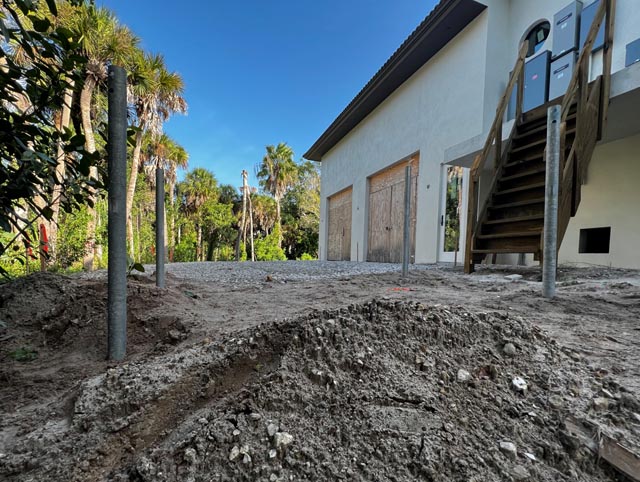

Coastal Foundation Solutions installed new foundation helical pilings to a 14 foot depth, 10 ton capacity to establish foundation support for the proposed generator pad. This level of support will ensure that the pad holds an appropriate foundation for the homeowner’s generator.
PRODUCTS
Helical Piles shall consist of the following components:
- 203 10” x 12” x 14” 84” L Galvanized Round Shaft Lead Section
- 203 84” L Galvanized Round Shaft Extensions
- Galvanized Termination Caps
